Standards for EV Wiring Harness Design: Building Safety and Performance into Every Connection
The design of a wiring harness for an electric vehicle (EV) is a discipline where precision meets safety. Unlike conventional vehicles, EVs operate with complex high-voltage systems, sophisticated data networks, and unique environmental demands. Adhering to rigorous standards for EV wiring harness design is not optional—it is the fundamental requirement for ensuring vehicle safety, reliability, and performance. For OEMs and engineers, understanding these standards is key to developing competitive and compliant electric vehicles.
This article explores the critical international standards and design principles that guide the development of modern EV wiring systems.
Standards provide a common language and a set of verified best practices. They ensure that components from different suppliers interoperate safely and that vehicles can be certified for markets worldwide. Following established standards for EV wiring harness design mitigates risks such as:
Electrical Failures: Short circuits, arc flashes, and insulation breakdown.
Electromagnetic Interference (EMI): Disruption of sensitive signals for ADAS, infotainment, and battery management systems.
Thermal Runaway: Overheating in high-current applications.
Mechanical Failure: Damage from vibration, abrasion, and harsh chemicals.
A robust design process integrates requirements from several major standards organizations.
While EVs have high-voltage traction systems, the majority of the vehicle's wiring is low-voltage. ISO 6722 is a foundational standard for road vehicles that specifies requirements for single-core cables with a nominal voltage of 60 V DC. It covers dimensions, construction, and performance requirements for temperature classes, flexibility, and flame retardancy.
For the critical high-voltage pathways (battery to inverter, inverter to motor, charging system), specific standards apply.
ISO 19642: This series of standards, developed from the old ISO 6722, includes categories for high-voltage cables. It defines requirements for cables rated for 600V and 1000V, focusing on insulation thickness, voltage endurance, and flame propagation.
LV 216 (German Standard): This is a widely recognized standard for high-voltage cables used in automotive applications. It sets stringent benchmarks for heat aging, fluid resistance, and flame retardancy. Many global manufacturers require compliance with LV 216 as a baseline.

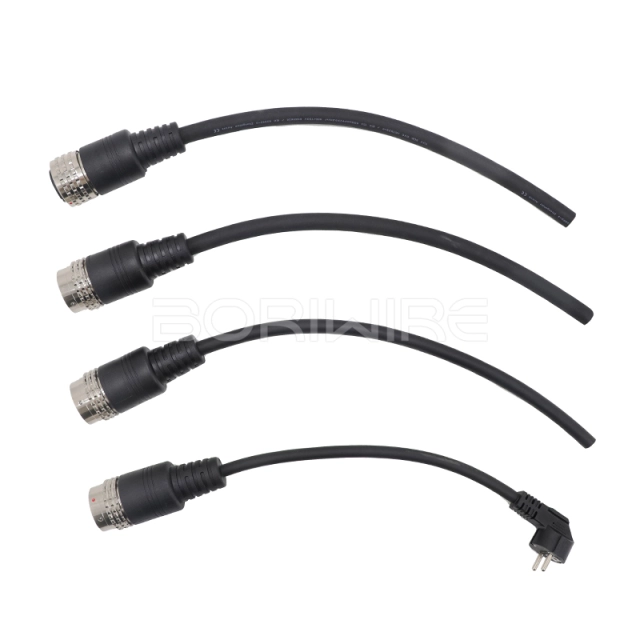

The connectors are critical points in the harness. Standards like LV 215 define safety requirements for high-voltage connectors, including:
HVIL (High Voltage Interlock Loop): A safety circuit that must be broken before the connector can be disconnected, ensuring the system is de-energized during servicing.
IP (Ingress Protection) Rating: Ensuring connectors are sealed against dust and moisture (e.g., IP67, IP6K9K).
Mechanical Locking: Preventing accidental disconnection due to vibration.
Beyond component standards, process standards are equally vital.
ISO 26262: This standard for functional safety applies to electrical and electronic systems. For a wiring harness, this means the design process must include systematic analysis of potential hazards and implement safety mechanisms to avoid or control them.
IATF 16949: This is the global quality management standard for the automotive industry. Compliance demonstrates that a manufacturer like Boriwire has a robust quality assurance system in place for continuous improvement, defect prevention, and variation reduction.
At Boriwire, we view international standards as the minimum starting point. Our engineering philosophy is to design harnesses that not only meet but exceed these requirements. Our design process integrates these standards from the very beginning, ensuring:
Material Selection: We choose cables, connectors, and sleeving that are certified to the relevant standards and suited for the specific application.
CAD & Simulation: We use advanced software to optimize routing for safety, thermal management, and assembly efficiency, avoiding sharp edges and heat sources.
Design for Manufacturing (DFM): We design harnesses that are not only high-performing but also manufacturable with consistent quality at scale.
Navigating the complex landscape of standards for EV wiring harness design requires a partner with deep expertise and a commitment to quality. Choosing the right supplier ensures your vehicle is built on a foundation of safety and reliability.
