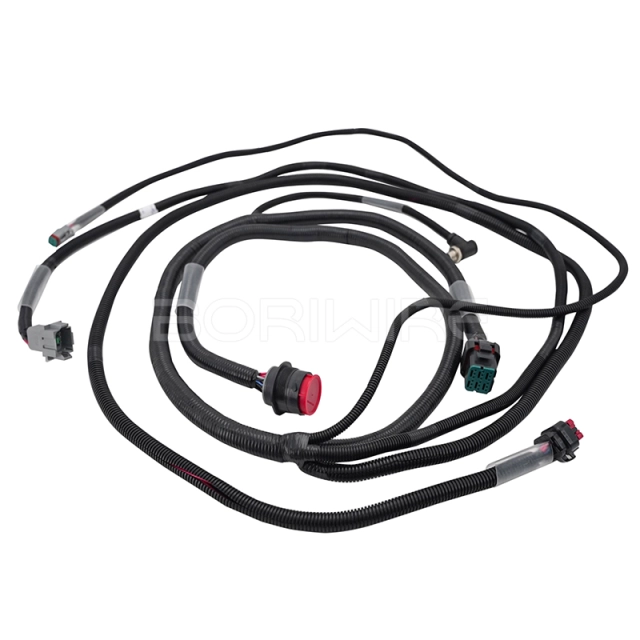

How to Test High Voltage Wiring Harness: A Guide to Safety and Reliability
The high-voltage wiring harness is the lifeline of an electric vehicle (EV), carrying the immense power needed to propel the vehicle. Ensuring its absolute integrity is not just a matter of performance—it's a critical safety imperative. A flaw in the harness can lead to system failures, reduced efficiency, or serious safety hazards. For engineers, quality assurance teams, and manufacturers, knowing how to test high voltage wiring harness systems correctly is foundational to building trustworthy electric mobility solutions.
This guide outlines the essential tests that a robust quality control process must include.
Before any testing begins, the highest level of safety must be established.
De-energize the System: Always ensure the vehicle or battery pack is completely powered down and isolated.
Personal Protective Equipment (PPE): Technicians must wear appropriate PPE, including high-voltage insulated gloves with regular leather over-gloves, and safety glasses.
Trained Personnel: Only qualified personnel with specific high-voltage training should perform these tests.
A comprehensive testing protocol evaluates the harness from every angle. Here are the critical procedures:
This is a fundamental check to ensure there are no open circuits.
How it's done: Using a multimeter, technicians check that electrical current flows uninterrupted through each circuit from the designated start point to the end point.
What it confirms: That every pin in a connector is correctly wired to its corresponding terminal, verifying the harness is built according to the design schematics.
This is arguably one of the most crucial tests for safety. It checks the quality of the insulation around the conductors.
How it's done: A megohmmeter (or megger) applies a high DC voltage (e.g., 500V or 1000V) between the conductor and the insulation's outer surface. The meter measures the resistance to the current that leaks through the insulation.
What it confirms: High resistance values (typically in the megaohm range) indicate excellent insulation integrity. Low resistance signals potential degradation, damage, or contamination that could lead to a short circuit.
This test is more stringent than the IR test and is designed to stress the insulation beyond its normal operating voltage to ensure a safety margin.
How it's done: A significantly higher voltage (e.g., several thousand volts) is applied between the conductors and the shield/ground for a specific duration (e.g., 60 seconds).
What it confirms: The insulation should not break down or arc during the test. Any failure indicates a weakness that could be dangerous under high-stress conditions, such as a voltage spike.
Even if a circuit is continuous, high resistance at connection points (terminals, connectors) can lead to power loss, heat generation, and potential failure.
How it's done: A micro-ohmmeter applies a known current through the circuit and measures the very small voltage drop across a connection point.
What it confirms: Low contact resistance ensures efficient power transmission and minimizes energy loss as heat, which is critical for EV range and component longevity.
These tests simulate the physical stresses a harness will endure throughout its lifecycle.
What it includes:
Pull Test: Verifies that terminals are securely crimped to the wires and will not detach under tension.
Connector Mating/Unmating Cycle Test: Ensures connectors can withstand repeated connections and disconnections without wear.
Vibration Test: Simulates vehicle motion to ensure wires and connections won't fatigue or loosen over time.
At Boriwire, we understand that theory is only as good as its practice. As a specialist in manufacturing high-voltage wiring harnesses for EVs, we don't just build to specifications—we build to surpass safety standards. Our state-of-the-art testing facilities are equipped to perform all these critical checks and more, ensuring every harness that leaves our facility is a product of unwavering reliability.
We believe that a meticulously tested harness is the backbone of a safe electric vehicle.
