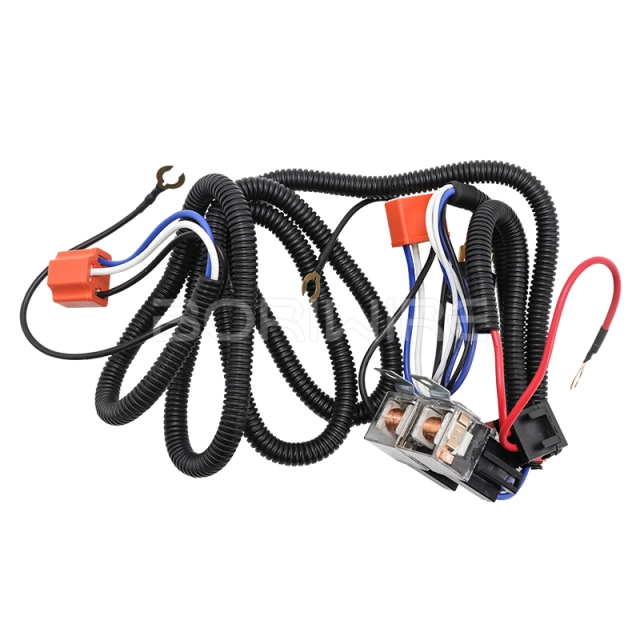

Automotive Wiring Harness: The Central Nervous System of Modern Vehicles, Engineered by BORIWIRE
In the intricate world of automotive engineering, where the focus often falls on powerful engines, sleek designs, and advanced infotainment systems, there exists a component that is as vital as it is overlooked: the Automotive Wiring Harness. This complex assembly of wires, connectors, and terminals is the central nervous system of every vehicle, silently and reliably transmitting power and data to every electronic component. As the automotive industry undergoes its most significant transformation in a century, propelled by electrification, autonomy, and connectivity, the role of the wiring harness has never been more critical. BORIWIRE stands at the forefront of this evolution, designing and manufacturing the sophisticated Automotive Wiring Harnesses that power the future of mobility.
The journey of the automotive wiring harness mirrors the evolution of the vehicle itself. In the early days of motoring, a handful of wires were sufficient to manage the ignition, headlights, and horn. Today, a premium vehicle can contain over 1,500 individual wires, stretching more than 3 miles (5 kilometers) in length, and comprising thousands of components. This exponential growth is driven by consumer demand for enhanced safety, comfort, and performance.
A modern Automotive Wiring Harness is responsible for:
Power Distribution: Acting as the circulatory system, it delivers electrical power from the battery and alternator to every corner of the vehicle, from the starter motor to the most minor interior LED light.
Data Communication: It serves as the information superhighway, facilitating high-speed communication between dozens of Electronic Control Units (ECUs). This enables everything from engine management and brake control to the seamless operation of Advanced Driver-Assistance Systems (ADAS).
Signal Transmission: It carries critical analog and digital signals from a vast network of sensors (measuring temperature, pressure, proximity, etc.) to the vehicle's central "brain," informing real-time decisions.
Grounding and Shielding: It provides a stable electrical ground and incorporates shielding to protect sensitive signals from electromagnetic interference (EMI), which is crucial for the reliable operation of safety systems and radio reception.
The design and manufacturing of this system are no longer a simple cabling task; it is a discipline of electrical engineering, materials science, and advanced logistics.
As a leading manufacturer of Automotive Wiring Harnesses, BORIWIRE approaches each project with a philosophy rooted in deep technical expertise and an unwavering commitment to quality. We understand that a harness failure can lead to anything from a minor inconvenience to a critical safety hazard, which is why reliability is engineered into every product we create.
1. The Design and Development Process:
Our harness creation begins long before the first wire is cut. It starts with a collaborative partnership with our clients.
Collaborative Design Review: Our engineering team works directly with client engineers to analyze system requirements, electrical loads, and data protocols. We provide expert input on optimal routing paths to avoid interference with mechanical components, heat sources, and sharp edges.
Digital Prototyping and Simulation: Using advanced CAD and CAE software, we create a complete digital twin of the wiring harness. This allows us to simulate factors like bend radius, thermal performance, and electromagnetic compatibility (EMC) in a virtual environment, identifying and resolving potential issues before physical prototyping begins.
Material Selection Expertise: The performance of a harness is dictated by its materials. BORIWIRE meticulously selects:
Wires: We use copper or aluminum wires with precisely calibrated gauges, chosen for their current-carrying capacity and flexibility. The insulation materials (e.g., PVC, Cross-Linked Polyethylene) are selected for their durability, temperature resistance, and flame-retardant properties.
Connectors: As a specialist in both connectors and harnesses, we offer an integrated solution. We select or custom-design connectors that provide secure, weatherproof, and electrically stable connections, featuring CPA and TPA systems for ultimate reliability.
Protective Components: We incorporate convoluted tubing, braided loom, tapes, and corrugated conduits to protect the wire bundle from abrasion, heat, moisture, and chemical exposure.
2. State-of-the-Art Manufacturing and Precision Assembly:
The assembly of a modern wiring harness is a sophisticated process that blends automated precision with skilled craftsmanship.
Automated Wire Processing: Our production lines feature fully automated cutting, stripping, and crimping machines. These machines ensure that every wire is cut to an exact length and that every terminal is crimped with a force and profile that guarantees a gas-tight connection, minimizing resistance and preventing failure.
Semi-Automated Assembly Boards: Harnesses are assembled on large, modular boards (kitting boards) that are configured to the specific design of the vehicle. Technicians, guided by detailed schematics, methodically lay out wires and fix connectors, clips, and other components into place. This process requires a high level of skill and attention to detail.
Robotic Soldering and Sealing: For specific applications, we employ robotic soldering for consistent quality. Where environmental sealing is required, we use automated processes to apply seals and gels that achieve IP6K9K and IP67 ratings, ensuring protection against dust and high-pressure water jets.
100% Electrical Testing: Every single harness that leaves a BORIWIRE facility undergoes 100% electrical testing. This is not a simple continuity check. Our automated test benches simulate the vehicle's electrical system, checking for:
Continuity and short circuits
Correct resistance
Proper insulation
Functional performance of embedded electronics (e.g., in smart harnesses)
The industry's shift towards new architectures places unprecedented demands on wiring systems. BORIWIRE is engineered to meet these challenges head-on.
1. Electric Vehicle (EV) Harnesses:
The heart of an EV requires a specialized approach. We design and manufacture:
High-Voltage Harnesses: These are engineered to safely route power from the battery to the inverter, electric motor, and onboard charger. They use specially colored (often orange) cables, robust connectors with HVIL (High-Voltage Interlock Loop) circuits, and enhanced insulation to handle voltages of 400V to 800V.
Battery Management System (BMS) Harnesses: Critical for monitoring the health and status of individual battery cells, these harnesses require extreme precision and reliability to ensure battery safety and longevity.
2. Data-Centric Architectures:
As vehicles become more autonomous, the volume of data skyrockets. BORIWIRE is proficient in integrating high-speed data cables into our harnesses, including:
Coaxial Cables for GPS and radio signals.
Shielded Twisted Pair (STP) and FAKRA/Mini-FAKRA connectors for camera and sensor data.
Ethernet Cables (e.g., 100BASE-T1) to support the high-bandwidth requirements of ADAS and infotainment systems, ensuring minimal signal loss and latency.
3. Weight and Space Optimization:
Every gram matters in the pursuit of efficiency, especially in EVs where weight directly impacts range. BORIWIRE employs advanced techniques like:
Utilizing smaller gauge wires where electrically permissible.
Implementing aluminum wiring for specific non-critical power distribution applications.
Optimizing harness architecture to reduce overall length and material use without compromising functionality.
Choosing BORIWIRE means selecting a partner dedicated to your project's success. We offer comprehensive support from concept to production, including prototyping, validation testing, and scalable manufacturing that aligns with your production schedules. Our global mindset ensures we can support projects for manufacturers and Tier 1 suppliers around the world.
Power Your Vehicle's Nervous System with BORIWIRE
In an era where a vehicle's value is defined by its electronics, the integrity of the Automotive Wiring Harness is paramount. It is the foundation upon which all innovation is built. Don't let the complexity of this critical component become a bottleneck in your development process.
Partner with BORIWIRE for harness solutions that deliver uncompromising quality, reliability, and performance.
For technical consultations, to request a quote, or to learn more about our capabilities, please contact our wiring harness specialist, Anemone:
Phone / WhatsApp / WeChat: +86 1379780 0328
Let us help you build the vehicles of tomorrow, today.
