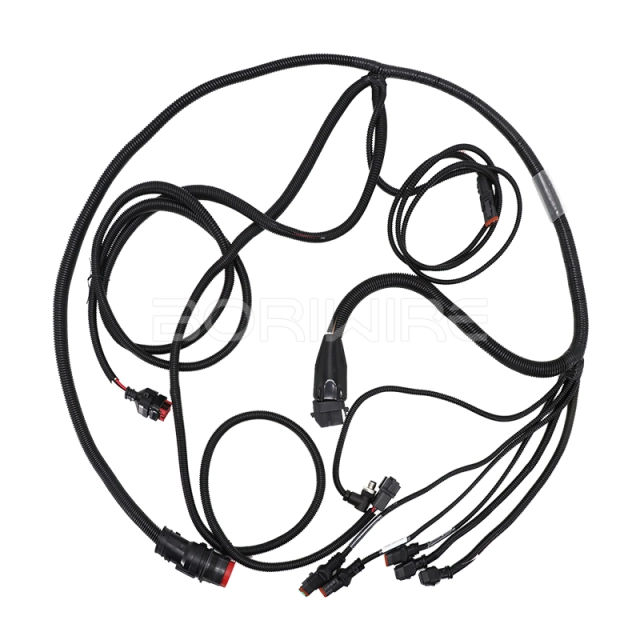

Automotive Engine Wiring Harness Components: The Critical Assembly Powering Modern Vehicle Performance
In the intricate ecosystem of an automobile's engine bay, where extreme temperatures, constant vibration, and exposure to chemicals create one of the most hostile environments in the entire vehicle, a single, meticulously engineered assembly ensures that the heart of the vehicle beats strong: the Automotive Engine Wiring Harness. This is not merely a bundle of wires; it is a sophisticated network of specialized components working in perfect harmony to deliver power, transmit data, and relay commands that control everything from ignition and fuel injection to emission systems and sensor monitoring. For automotive engineers and procurement specialists, understanding these components is essential for ensuring performance, reliability, and compliance. At BORIWIRE, we specialize in the engineering and manufacturing of these critical subsystems, mastering every detail that defines their quality and durability.
The engine wiring harness operates in a uniquely challenging environment. Temperatures can swing from sub-zero cold starts to over 120°C (248°F) near exhaust manifolds. It is bombarded by constant vibration from the engine block, exposed to oil, fuel, coolant, and salt spray. A failure here is not an option—it can lead to immediate engine shutdown, poor performance, or even safety hazards. Therefore, every single component within the Automotive Engine Wiring Harness must be selected and engineered to withstand these brutal conditions for the life of the vehicle.
An engine wiring harness is a complex integration of multiple elements. Let's dissect the critical components that BORIWIRE expertly brings together to create a robust and reliable system.
1. Wires and Cables: The Arteries of the System
The wires are the fundamental conduits for electrical energy and information. In an engine harness, they are far from generic.
Conductor Materials: High-purity copper is standard for its excellent conductivity. For specific, weight-sensitive applications, aluminum alloys may be used with special termination techniques to prevent galvanic corrosion.
Insulation Materials: This is where performance is defined. Standard PVC is insufficient. BORIWIRE utilizes advanced materials like:
Cross-Linked Polyethylene (XLPE): Offers superior thermal resistance, maintaining integrity at temperatures up to 150°C.
Polytetrafluoroethylene (PTFE): Used in extreme high-temperature areas near turbos or exhausts, capable of withstanding over 200°C.
Irradiated PVC: Provides a balance of good temperature resistance and flexibility.
Specialized Cable Types: Beyond standard single-core wires, engine harnesses incorporate:
Shielded Cables: Essential for crank and cam position sensors, and knock sensors, where protecting the low-voltage signal from electromagnetic interference (EMI) is critical for accurate engine management.
Twisted Pair Cables: Used for data communication (e.g., between the ECU and sensors) to cancel out electromagnetic noise.
2. Terminals and Connectors: The Secure Junctions
These components are the critical interface points. A poor connection here can cause voltage drops, signal noise, or complete failure.
Terminals: The precision-machined metal pins that make the electrical contact. BORIWIRE sources and manufactures terminals from high-quality, corrosion-resistant copper alloys, often plated with tin, silver, or gold for optimal conductivity and durability. The design of the terminal's spring beam is crucial—it must provide sufficient normal force to maintain contact through years of vibration.
Connector Housings: These plastic shells hold the terminals in place and mate with counterparts on sensors, actuators, and the ECU. Engine bay connectors must be made from high-temperature thermoplastics like PBT (Polybutylene Terephthalate) or PPS (Polyphenylene Sulfide). A key feature is the CPA (Connector Position Assurance) clip, a secondary lock that audibly "clicks" to confirm the connector is fully mated and won't vibrate loose.
Seals and Plugs: Every potential entry point for moisture and contaminants is sealed. Each wire entry into a connector has an individual rubber grommet. The connector housing itself features a primary seal that engages with its mate. BORIWIRE's seals are typically made from silicone or special elastomers that remain flexible across the entire operating temperature range and provide IP67, IP6K9K, or higher protection levels.
3. Protective Sheathing and Conduits: The Armor
The entire wire bundle requires robust external protection from abrasion, heat, and chemical exposure.
Convoluted Tubing: This flexible, ribbed plastic tubing (often made from nylon or PP) is the most common protective sleeve. It is split along its length for easy assembly and provides excellent abrasion resistance.
Heat Sleeves: For routing near exhaust manifolds or turbochargers, BORIWIRE uses specialized woven fiberglass or silicone-impregnated sleeves that can reflect heat and withstand temperatures exceeding 500°C.
Braided Loom: A woven fabric sleeve, often from materials like PET, offers a high degree of flexibility and a clean, professional appearance, along with good protection.
Tapes: Harness wrapping tapes, typically made of PVC or non-PVC cloth, are used to bind wires together, add an extra layer of abrasion resistance, and dampen vibration.
4. Grounding Points and Splices: The System's Foundation
A reliable electrical system is dependent on a stable ground.
Grounding Lugs: These are specialized terminals or rings that securely bolt the harness ground wires to the engine block or chassis. BORIWIRE ensures these lugs are properly plated and torqued to specifications to prevent corrosion and maintain a low-resistance path.
Splices: When multiple wires need to connect to a single circuit, a splice is used. Modern harnesses use ultrasonic welding or cold welding to fuse wires together. This method, which BORIWIRE employs, creates a monolithic metal joint that is more reliable, compact, and resistant to corrosion and vibration than traditional solder joints.
Our expertise lies not just in sourcing these components, but in engineering their integration to meet the highest automotive standards.
In-House Component Validation: We don't just trust supplier data sheets. Our quality assurance lab performs rigorous testing on all incoming materials—from wire flex life and insulation resistance tests to terminal pull-force tests and connector mating cycle validation.
Advanced Manufacturing Processes: Our production lines feature fully automated wire processing, crimping, and ultrasonic welding machines. This ensures that every terminal is crimped with perfect force and profile, and every splice is electrically and mechanically sound.
Component-Level DFM (Design for Manufacturability): Our engineers work with clients to select and sometimes even customize components for optimal assembly. This might involve specifying a connector with a better seal design or a wire with higher flex endurance for a specific routing path.
Full-System Testing: Beyond testing individual components, every completed engine harness from BORIWIRE undergoes 100% electrical testing. We check for continuity, short circuits, resistance, and insulation integrity. For complex harnesses, we perform functional tests that simulate the actual signals and loads of the engine.
The demands on engine harness components vary significantly across different propulsion systems.
High-Performance Internal Combustion Engines: These harnesses require robust shielding for sensitive sensor signals and high-temperature protection for components near turbochargers.
Hybrid Electric Vehicle (HEV) Powertrains: The engine harness must integrate with high-voltage components, requiring careful separation and shielding to prevent EMI from affecting the sensitive low-voltage engine control signals.
Sensor Fusion for Emission Control: Modern engines rely on a dense network of sensors (oxygen, NOx, pressure) to meet emission standards (Euro 7, etc.). The harness components for these systems must guarantee flawless signal integrity.
Secure Your Engine's Performance from the Ground Up
The reliability of your vehicle's powertrain is directly dependent on the quality and integration of the Automotive Engine Wiring Harness Components. In a world of increasing complexity and performance demands, partnering with a specialist is not a luxury—it is a necessity.
BORIWIRE provides the engineering depth, manufacturing precision, and quality assurance required for these mission-critical assemblies. We control the process from raw material to finished harness, ensuring every component meets the highest standards.
For a detailed consultation on your specific engine harness requirements, to request component samples, or to discuss a potential project, please contact our engineering specialist, Anemone.
Phone / WhatsApp / WeChat: +86 1379780 0328
Partner with BORIWIRE. Let us engineer the robust foundation that powers and connects your most advanced engines.
