In the intricate ballet of a modern automobile, where thousands of components work in perfect harmony, one unsung hero forms the central nervous system of the entire machine: the automotive wiring harness. This complex assembly of wires, connectors, and terminals is the lifeline that powers every innovation, from the essential spark in the engine to the sophisticated infotainment screens and advanced driver-assistance systems (ADAS). At Boriwire, we understand that the quality, reliability, and precision of this harness are not just manufacturing details—they are the fundamental pillars of vehicle performance, safety, and longevity. This article delves deep into the world of automotive wiring harness manufacturing, exploring the processes, challenges, and innovations that define this critical component.

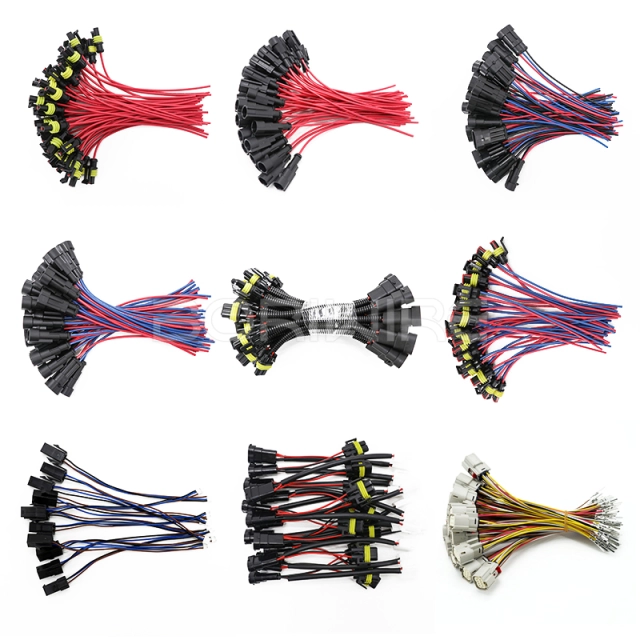

Before understanding the manufacturing, one must appreciate what a wiring harness is. Far more than a simple bundle of wires, it is a meticulously engineered network designed to transmit power and data throughout the vehicle. Its key components include:
Wires and Cables: The veins and arteries of the system. These are not one-size-fits-all; they vary drastically in gauge (thickness), material (primarily copper or aluminum), and insulation type (e.g., PVC, Cross-linked Polyethylene) based on the current load, voltage, and environmental exposure.
Connectors: The critical junctions where subsystems connect. These plastic or nylon housings, containing metal terminals, ensure secure and reliable connections for everything from engine control units (ECUs) to window switches. They are engineered for durability, often featuring seals and locking clips to prevent disconnection from vibration.
Terminals: The metal pins and sockets housed within the connectors. Precision-formed from copper alloys and often plated with tin or gold, they create the actual electrical contact point.
Protective Sleeving: This includes conduit, corrugated tubing, fabric loom tape, and split sleeving. Its primary role is to protect the wires from abrasion, heat, moisture, and electromagnetic interference (EMI).
Fuses, Relays, and Central Electric Units: These are the "brains" and "safety switches" integrated into the harness, protecting circuits from overcurrent and controlling high-power devices.
The creation of a reliable automotive wiring harness is a symphony of advanced engineering and meticulous handcraftsmanship. At Boriwire, our process is built on a foundation of quality and precision.
1. Design and Engineering: The Digital Blueprint
The journey begins long before the first wire is cut. Using advanced Computer-Aided Design (CAD) and Electrical Design Automation (EDA) software, our engineers create a digital 3D model of the entire harness. This stage is crucial for:
Circuit Design: Defining the electrical paths and ensuring correct signal integrity.
Routing Optimization: Virtually placing the harness within the vehicle's chassis to avoid interference with moving parts, sharp edges, and heat sources.
Bill of Materials (BOM) Generation: Specifying every single component, from wire gauges to connector part numbers.
2. Wire Processing and Cutting
The raw wires are first loaded onto automated cutting and stripping machines. These machines measure the wires to exact lengths and strip the insulation from the ends with micron-level precision, preparing them for terminal attachment. For complex harnesses, some wires may be twisted at this stage to mitigate EMI.
3. Terminal Crimping
The stripped wire ends are then fed into automated crimping machines. Here, the metal terminals are permanently attached to the conductors. This is one of the most critical steps. A proper crimp ensures low electrical resistance and high mechanical strength. At Boriwire, we perform continuous pull-force and crimp-height tests to validate every connection, ensuring it can withstand the vibrations and thermal cycles of a vehicle's lifetime.
4. Sub-Assembly and Preforming
Smaller sections of the harness, such as a door loom or an engine bay sub-harness, are often pre-assembled on modular jigs or boards. These "kitting boards" are laid out with pins and guides that match the harness's design. Technicians, following digital work instructions, carefully route the wires and snap on connectors, seals, and clamps. This modular approach improves efficiency and quality control.
5. The Main Assembly Board
The final assembly takes place on a full-size, pin-board representation of the vehicle's harness layout. This large, often vertical, board is a physical manifestation of the digital design. Skilled assemblers meticulously lay the pre-formed sub-assemblies and individual wires onto the board, bundling them together with tapes, ties, and protective sleeving as specified. This manual process, guided by years of experience, is essential for handling the complexity and variability of a full harness.
6. Quality Control and Testing: The Zero-Defect Pursuit
Once assembled, the harness undergoes a rigorous battery of tests. This is where Boriwire's commitment to excellence becomes tangible.
Electrical Testing: The harness is plugged into a custom test bench that performs a 100% electrical continuity test. It checks for shorts, opens, miswires, and incorrect resistances. High-potential (Hi-Pot) tests are conducted to verify the insulation can withstand voltage spikes without breakdown.
Geometrical Validation: The harness is compared against a digital model or physical template to ensure all branches, connectors, and components are in the correct position and length.
Seal and Connector Engagement Check: Every sealed connector is inspected to ensure its integrity, protecting the electrical systems from moisture and dust.
The automotive industry is undergoing its most significant transformation in a century, and wiring harnesses are at the epicenter of this change.
1. The Electric Vehicle (EV) Revolution
Electric vehicles place unprecedented demands on wiring systems. They require:
High-Voltage Cables: EVs operate with powertrains at 400V or even 800V, necessitating specialized, thickly insulated orange cables designed to handle extreme power levels safely.
EMI Shielding: The high-power inverters and motors generate significant electromagnetic interference. Shielding, often with braided metal or aluminum foil, is essential to protect sensitive data cables for vehicle control.
Thermal Management: High-current applications generate heat. Boriwire utilizes high-temperature materials and innovative designs to manage thermal loads effectively.
2. The Rise of Autonomous and Connected Vehicles
As vehicles become more autonomous and connected, the volume of data transmitted explodes. This has led to a fundamental shift from traditional copper wires to high-speed data cables, such as:
Coaxial Cables: For radio frequency signals (GPS, radio).
Shielded Twisted Pair (STP): For CAN (Controller Area Network) and Ethernet protocols.
Automotive Ethernet: The new backbone for in-vehicle networks, enabling the high bandwidth required for cameras, LiDAR, radar, and infotainment systems.
3. Lightweighting for Efficiency
Every gram matters in the quest for better fuel economy and longer EV range. Boriwire is at the forefront of lightweighting initiatives, employing thinner wall insulations, smaller connectors, and aluminum wires (where electrically feasible) to reduce the overall weight of the wiring system without compromising performance or safety.
In a global market, choosing the right manufacturing partner is paramount. Boriwire has distinguished itself through an unwavering commitment to three core principles:
Precision Engineering: We don't just follow blueprints; we collaborate with our clients from the design phase to optimize the harness for manufacturability, cost, and performance. Our engineering team has deep expertise in international standards and OEM-specific requirements.
Robust Quality Assurance: Our quality management system, certified to IATF 16949, is integrated into every step of our process. From incoming material inspection to final audit, we employ statistical process control and advanced testing methodologies to ensure every harness that leaves our facility is flawless.
Supply Chain Reliability: We have established strong, long-term relationships with a global network of tier-1 component suppliers. This allows us to guarantee material quality, manage costs effectively, and ensure on-time delivery for projects of any scale, from prototype runs to full-scale production.
The automotive wiring harness is a masterpiece of electrical and mechanical engineering, a component that has evolved from a simple electrical accessory to the central nervous system of the vehicle. Its manufacturing requires a unique blend of advanced automation, skilled craftsmanship, and rigorous testing. As vehicles become more electric, autonomous, and connected, the role of the wiring harness will only grow in complexity and importance.
At Boriwire, we are proud to be at the heart of this evolution. We manufacture more than just wiring harnesses; we create the reliable, high-performance pathways that power innovation and drive the future of mobility forward.
For world-class Automotive Wiring Harness solutions, contact our experts today. Let's discuss how we can support your project requirements.
